Laboratory Task 3 - Implementing Forward and Backward Propagation

Laboratory Task 3 - Implementing Forward and Backward Propagation#

DS Elective 4 - Deep Learning#

Name: Keith Laspoña
Year & Section: DS4A

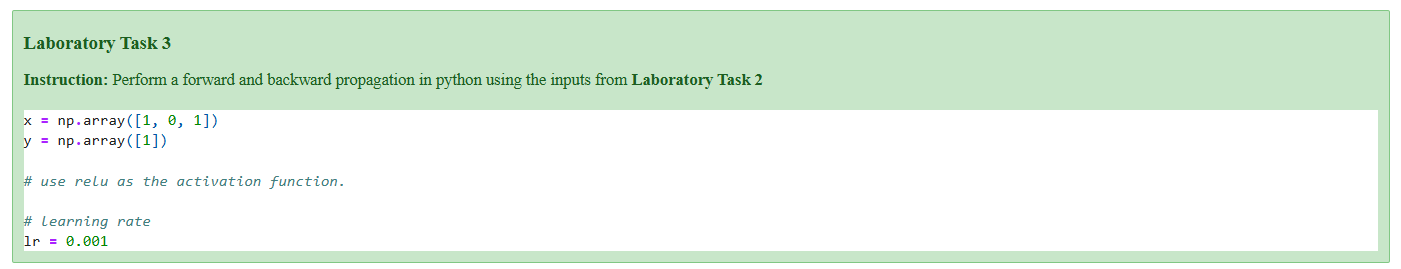

Instruction: Perform a forward and backward propagation in python using the inputs from Laboratory Task 2

Lab2

1. Perform standard imports#

import numpy as np

2. Define activation functions#

def relu(x):
    return np.maximum(0, x)

def relu_derivative(x):
    return (x > 0).astype(float)

3. Initialize parameters#

# Input vector
x = np.array([[1], [0], [1]])

# Hidden unit weights
hidden_weights = np.array([
    [0.2, -0.3],
    [0.4,  0.1],
    [-0.5, 0.2]
])

# Output unit weights
output_weights = np.array([
    [-0.3],
    [-0.2]
])

# Bias
hidden_bias = np.array([[-0.4], [0.2]])
output_bias = np.array([[0.1]])

# True target value
target = np.array([[1]])

# Learning rate
lr = 0.001

4. Forward Propagation#

# Calculate hidden layer weighted sum
hidden_sum = hidden_weights.T @ x + hidden_bias
# Activate hidden layer neurons
hidden_output = relu(hidden_sum)

# Calculate output layer weighted sum
output_sum = output_weights.T @ hidden_output + output_bias
# Get final prediction
prediction = relu(output_sum)

print(f"Final Prediction: {prediction.flatten()[0]:.4f}\n")

Final Prediction: 0.0800

5. Backward Propagation#

# Calculate error derivative
error_derivative = -(target - prediction)

# Backpropagate to output layer
delta_output = error_derivative * relu_derivative(output_sum)
print(f"Delta for output layer (delta_output):\n{delta_output}\n")

Delta for output layer (delta_output):
[[-0.92]]

# Calculate derivative of error wrt output weights
d_output_weights = delta_output @ hidden_output.T
print(f"Derivative of error wrt output weights (d_output_weights):\n{d_output_weights}\n")

Derivative of error wrt output weights (d_output_weights):
[[ 0.    -0.092]]

# Backpropagate to hidden layer
delta_hidden = (output_weights @ delta_output) * relu_derivative(hidden_sum)
print(f"Delta for hidden layer (delta_hidden):\n{delta_hidden}\n")

Delta for hidden layer (delta_hidden):
[[0.   ]
 [0.184]]

# Calculate derivative of error wrt hidden weights
d_hidden_weights = delta_hidden @ x.T
print(f"Derivative of error wrt hidden weights (d_hidden_weights):\n{d_hidden_weights}\n")

Derivative of error wrt hidden weights (d_hidden_weights):
[[0.    0.    0.   ]
 [0.184 0.    0.184]]

6. Update Weights and Biases#

# Update output layer weights and bias
output_weights -= lr * d_output_weights.T
output_bias -= lr * delta_output

print(f"Updated Output Weights (output_weights):\n{output_weights}\n")

Updated Output Weights (output_weights):
[[-0.3     ]
 [-0.199908]]

# Update hidden layer weights and bias
hidden_weights -= lr * d_hidden_weights.T
hidden_bias -= lr * delta_hidden

print(f"Updated Hidden Weights (hidden_weights):\n{hidden_weights}\n")

Updated Hidden Weights (hidden_weights):
[[ 0.2      -0.300184]
 [ 0.4       0.1     ]
 [-0.5       0.199816]]

Conclusion#

In this laboratory, we successfully implemented a complete training cycle for a simple neural network. The process commenced with forward propagation, where the initial inputs were passed through the hidden and output layers to generate a final prediction of 0.0800.

Subsequently, we initiated backward propagation by first calculating the error between this prediction and the true target value. This error signal was then propagated backward through the network, allowing us to compute the gradients or the contribution of each weight and bias to the total error using the chain rule. These gradients indicated the direction and magnitude of change required for each parameter to improve the model’s performance.

The final step was the parameter update, where we adjusted the network’s weights and biases in the opposite direction of their respective gradients, scaled by a small learning rate. This single, complete iteration demonstrates the fundamental mechanism by which a neural network learns, incrementally refining its parameters to minimize prediction error.
